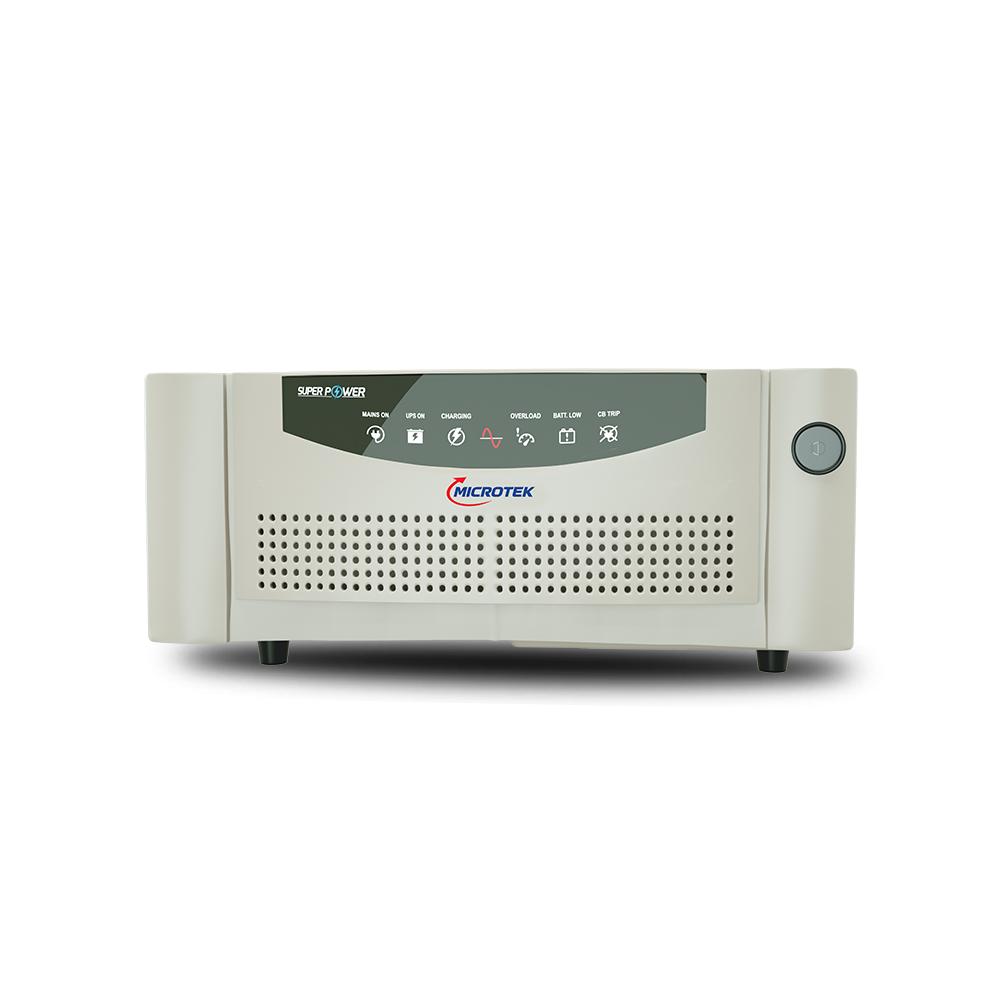

Super Power Digital UPS Model 700 (12V) DG
- Weight6.9kg
- Output VoltageSame as INPUT
- Dimensions (L*W*H)34x38.2x19.8
SALIENT FEATURES:
- Low Watt Loss EI Core Its Save Electricity.
- Dura Retain Technology for Longer Power Backup.
- Resettable Circuit Breaker for Total Safety of connected appliances.
- Constant Continuous Regulated Charging saves electricity while charging.
- Intelligent Pulse Technology for Faster Charging & More Battery Life.
MICROTEK SUPER POWER UPS SERIES 700 (12V) is a Micro Controller design based, LARGEST SELLING SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Standard Voltage Range from 100V~300V and Narrow Voltage Range from 180V~260V.
Microtek Super Power UPS Series 700 (12V) Inverter UPS, Input Voltage: 100-300V is a premium quality product from Microtek. Super Power Advanced Digital UPS 700 12V Inverter are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Microtek Super Power Adavanced Digital UPS 700 12V, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Microtek products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Microtek Home Inverter & UPS.
MICROTEK SUPER POWER UPS SERIES 700 (12V) is a Micro Controller design based, LARGEST SELLING SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Standard Voltage Range from 100V~300V and Narrow Voltage Range from 180V~260V.
Microtek Super Power UPS Series 700 (12V) Inverter UPS, Input Voltage: 100-300V is a premium quality product from Microtek. Super Power Advanced Digital UPS 700 12V Inverter are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Microtek Super Power Adavanced Digital UPS 700 12V, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Microtek products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Microtek Home Inverter & UPS.
- Low Watt Loss EI Core Its Save Electricity.
- Dura Retain Technology for Longer Power Backup.
- Resettable Circuit Breaker for Total Safety of connected appliances.
- Constant Continuous Regulated Charging saves electricity while charging.
- Intelligent Pulse Technology for Faster Charging & More Battery Life.
- Auto Reset Funtion During & After Overload Conditions.
- Micro Controller Based Intelligent Control Design.
- LED Display Indications (Status & Fault)
- CCCV Technology with Auto Trickle Mode
- Smart Overload Sense and Short Circuit Protection
- Battery State Monitoring
- Multi Stage Battery Charger
- Mains Input Voltage Range Slide Selection Switch
DISPLAY
- MAINS ON
- UPS ON
- CHARGING
- OVERLOAD
- BATTERY LOW
- FAULT INDICATION
Super Power 700 (12V) DG | |
---|---|
INPUT | |
INPUT VOLTAGE (Standard range) | 100V ~ 300V |
INPUT VOLTAGE (Narrow Range) | 180V ~ 260V |
OUTPUT | |
OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
OUTPUT VOLTAGE (UPS Mode) | 200V ~ 230V + 10% |
OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
OUTPUT WAVE FROM (UPS Mode) | TPZi Wave From (Trap Zoidal Wavefrom) |
CHANGE-OVER | |
SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
UPS TRANSFER TIME | <15 msec |
TECHNOLOGY | |
DESIGN | Micro Controller Based Design With IPS Technology |
BATTERY CHARGING CURRENT | Constant Charging Approx. 10% of the Rated Battery Current in AH |
UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
BROWNS ON MAINS VOLTAGE | 100V + 40V |
EFFICIENCY (BATTERY MODE) | >84% |
AUTO RESET FEATURE | 10.5V ~ 14.2V |
CHARGING CURRENT | 10 Amps + 1 Amps |
