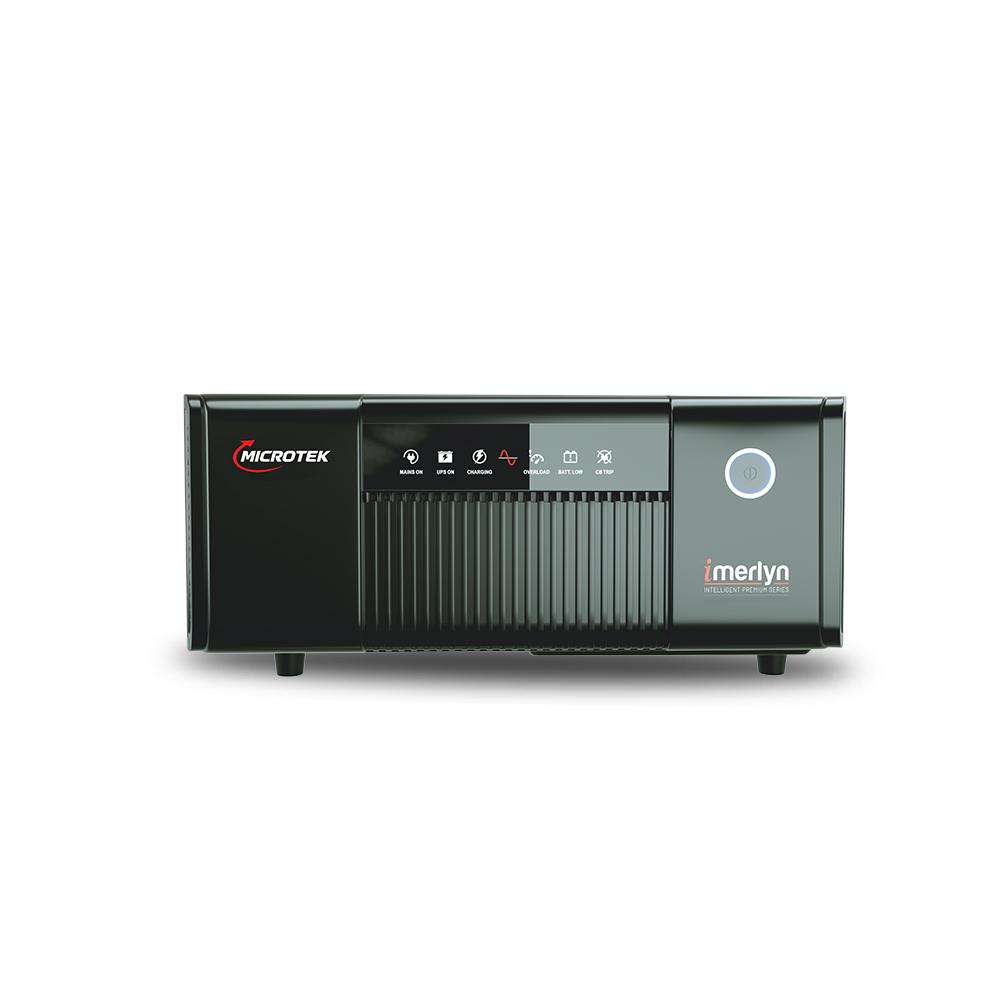

iMERLYN Digital UPS Model 850 (12V) DG
SKU: 899-981-0850
CATEGORY: INVERTER/HOME UPS
₹6,700
MRP: ₹6,740
- Weight7.35kg
- Output Voltage588 Watts
- Dimensions (L*W*H)34x38.2x19.8
SALIENT FEATURES:
- Micro controlled based Intelligent Control Design.
- Display Indications (Status & Fault).
- High Peak Current Handling Capability.
- High Voltage Surge Protection.
- Charging Mode, Load Type & Battery Type Selection Switches.
MICROTEK iMERLYN UPS 850 is Micro Controller design based, LARGEST SELLING PREMIUM SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Inverter Range from 90V~300V and UPS Range from 180V~260V.
| Rated Capacity | 700 VA |
| Output Power | 588 Watts |
| Battery | 1 Battery System (12V) |
| Wave form | TPZi Wave |
| Warranty | 2 Years |
MICROTEK iMERLYN UPS 850 is Micro Controller design based, LARGEST SELLING PREMIUM SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Inverter Range from 90V~300V and UPS Range from 180V~260V.
| Rated Capacity | 700 VA |
| Output Power | 588 Watts |
| Battery | 1 Battery System (12V) |
| Wave form | TPZi Wave |
| Warranty | 2 Years |
- Micro controlled based Intelligent Control Design.
- Display Indications (Status & Fault).
- High Peak Current Handling Capability.
- High Voltage Surge Protection.
- Charging Mode, Load Type & Battery Type Selection Switches.
- Re-Settable Circuit Breaker.
- Smart Thermal Management Protection.
DISPLAY
- MAINS ON
- UPS ON
- BATTERY CHARGING
- OVERLOAD
- BATTERY LOW
- CB TRIP
| MODEL | iMERLYN850 (12) DG |
|---|---|
| INPUT | |
| INPUT VOLTAGE (Standard range) | 90V ~ 300V |
| INPUT VOLTAGE (Narrow Range) | 180V ~ 260V |
| OUTPUT | |
| OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
| OUTPUT VOLTAGE (UPS Mode) | 200V ~ 230V + 10% |
| OUTPUT FREQUENCY (UPS Mode) | 50 Hz ± 0.1 Hz |
| OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
| OUTPUT WAVE FROM (UPS Mode) | TPZi Wave form (Trape Zoidal waveform) |
| CHANGE-OVER | |
| SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
| UPS TRANSFER TIME | <15msec |
| TECHNOLOGY | |
| DESIGN | Micro Controller Based Design With IPS Technology |
| BATTERY CHARGING CURRENT | Constant Charging Approx. 10% of the Rated Battery Current in AH |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
| BROWNS ON MAINS VOLTAGE | 100V +40V |
| EFFICIENCY (BATTERY MODE) | >84% |
| AUTO RESET FEATURE | YES |
| OPERATING TEMPRATURE | -20°~45° Degree Celsius |
| WEIGHT (KG) | 08 KG |
| DIMENSION (LxWxH) in CM | 34x38.2x19.8 CM |
