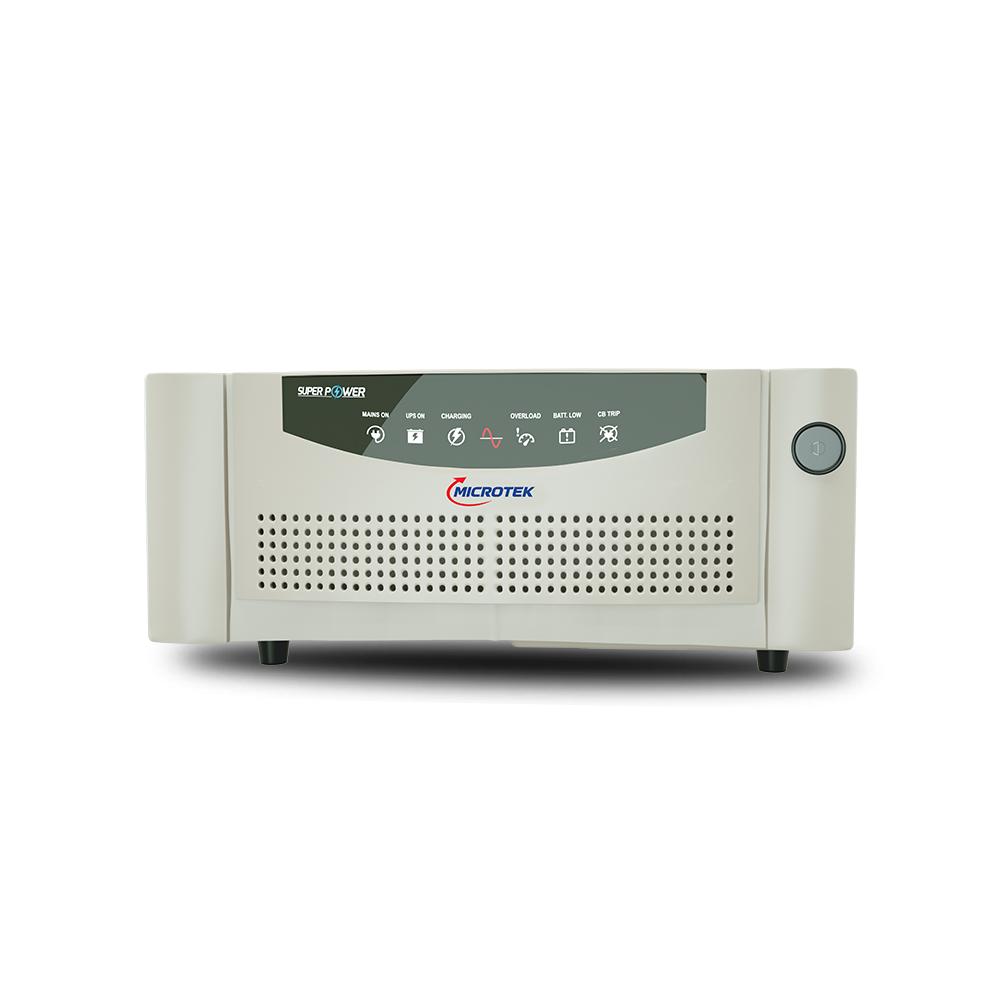

Super Power Pure Sinewave UPS Models 700 (12V) SW
- Weight6.9kg
- Output VoltageSame as INPUT
- Dimensions (L*W*H)34x38.2x19.8
SALIENT FEATURES:
Super Power High Performance UPS Series Comes with Super Technology that Give Super Longer Power Backup and Super Longer Battery Life.
- Low Watt Loss EI Core Its Save Electricity.
- Dura Retain Technology for Longer Power Backup.
- Resettable Circuit Breaker for Total Safety of connected appliances.
- Constant Continuous Regulated Charging saves electricity while charging.
- Intelligent Pulse Technology for Faster Charging & More Battery Life.
Microtek Super Power Pure Sinewave UPS 700 is a Micro Controller design based, LARGEST SELLING SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Standard Voltage Range from 100V~300V and Narrow Voltage Range from 180V~260V.
Super Power Pure Sinewave UPS Series Models are based on Intelli Pure Sinewave Technology which ensures Noiseless,Safe and Efficient Performance along with Longer Backup.
Microtek Super Power Pure Sinewave UPS 700 is a Micro Controller design based, LARGEST SELLING SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Standard Voltage Range from 100V~300V and Narrow Voltage Range from 180V~260V.
Super Power Pure Sinewave UPS Series Models are based on Intelli Pure Sinewave Technology which ensures Noiseless,Safe and Efficient Performance along with Longer Backup.
- Low Watt Loss EI Core Its Save Electricity.
- Dura Retain Technology for Longer Power Backup.
- Resettable Circuit Breaker for Total Safety of connected appliances.
- Constant Continuous Regulated Charging saves electricity while charging.
- Intelligent Pulse Technology for Faster Charging & More Battery Life.
- Auto Reset Funtion During & After Overload Conditions.
- Micro Controller Based Intelligent Control Design.
- LED Display Indications (Status & Fault)
- CCCV Technology with Auto Trickle Mode
- Smart Overload Sense and Short Circuit Protection
- Battery State Monitoring
- Multi Stage Battery Charger
- Mains Input Voltage Range Slide Selection Switch
DISPLAY
- MAINS ON
- UPS ON
- CHARGING
- OVERLOAD
- BATTERY LOW
- FAULT INDICATION
| MODEL | Super Power 700 (12V) SW |
|---|---|
| INPUT | |
| INPUT VOLTAGE (Standard range) | 100V ~ 300V |
| INPUT VOLTAGE (Narrow Range) | 180V ~ 260V |
| OUTPUT | |
| OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
| OUTPUT VOLTAGE (UPS Mode) | 200V ~ 230V + 10% |
| OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
| OUTPUT WAVE FROM (UPS Mode) | Pure SInewave |
| CHANGE-OVER | |
| SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
| UPS TRANSFER TIME | <15msec |
| TECHNOLOGY | |
| DESIGN | Micro Controller Based Design With IPS Technology |
| BATTERY CHARGING CURRENT | Constant Charging Approx. 10% of the Rated Battery Current in AH |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
| BROWNS ON MAINS VOLTAGE | 100V +40V |
| EFFICIENCY (BATTERY MODE) | >80% |
| AUTO RESET FEATURE | YES |
| INPUT DC RANGE | 10.5V ~ 14.2V |
| CHARGING CURRENT (Standard) | 10 Amps +1 Amps |
| CHARGING CURRENT (High) | 14 Amps +1 Amps |
