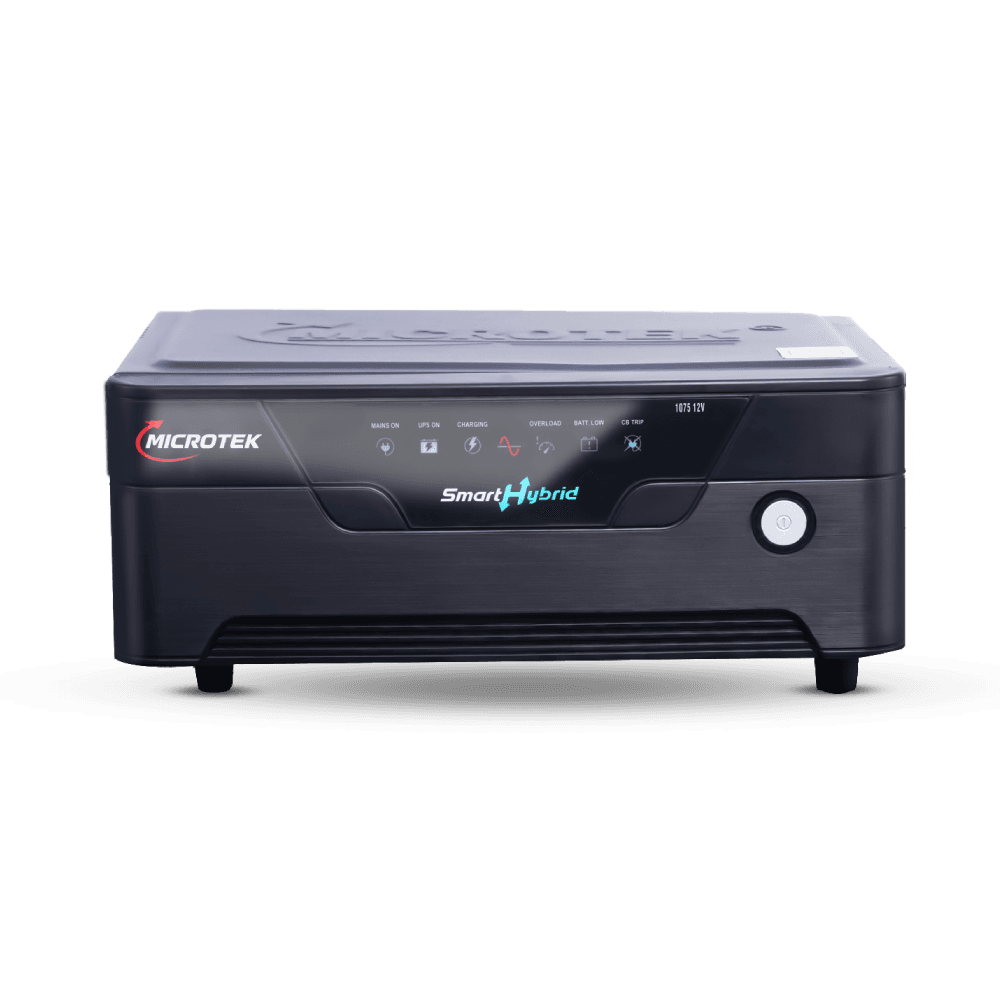

Smart Hybrid Digital & Sinewave Technologies UPS Model 1875 (24V)
- Weight16.3kg
- Output VoltageSame as INPUT
- Dimensions (L*W*H)43.3x46.3x23.2
SALIENT FEATURES:
- Hybrid Technology for Noiseless and Better Performance with Longer Backups & Battery Life.
- Battery Charging Current Selection Switch with Standard (10 Amps) & Fast Charging (14 Amps) Mode.
- IBGM Technology - Increases Battery Life and Performance by maintaining correct Battery Gravity.
- PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging.
- IN-Build Bypass Switch - Enables to isolate the UPS From Mains, whenever Needed.
Microtek Smart Hybrid Digital & Sinewave Technologies UPS Model 1875 (24V), which is a Perfect Combination of Digital & Sinewave technologies which ensures Noiseless Performance, Quick Charging, More Load, Longer Battery Life and Longer Backups. It is a Premium Product that comes with Multiple Features such as In-Built Bypass Switch and IBGM (Intelli Battery Gravity Management) Technology. It has Battery type Selection Switch for Tubular and Flat Plate Battery type and also Voltage Range Selection Switch.
Rated Capacity | 1650 VA / 24V |
Output Power | 1320 Watts |
Battery | 2 Battery System (24 VDC) |
Waveform | Sinewave |
Warranty | 2 Years |
Microtek Smart Hybrid Digital & Sinewave Technologies UPS Model 1875 (24V), which is a Perfect Combination of Digital & Sinewave technologies which ensures Noiseless Performance, Quick Charging, More Load, Longer Battery Life and Longer Backups. It is a Premium Product that comes with Multiple Features such as In-Built Bypass Switch and IBGM (Intelli Battery Gravity Management) Technology. It has Battery type Selection Switch for Tubular and Flat Plate Battery type and also Voltage Range Selection Switch.
Rated Capacity | 1650 VA / 24V |
Output Power | 1320 Watts |
Battery | 2 Battery System (24 VDC) |
Waveform | Sinewave |
Warranty | 2 Years |
- Hybrid Technology for Noiseless and Better Performance with Longer Backups & Battery Life.
- Battery Charging Current Selection Switch with Standard (10 Amps) & Fast Charging (14 Amps) Mode.
- IBGM Technology – Increases Battery Life and Performance by maintaining correct Battery Gravity.
- PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging.
- IN-Build Bypass Switch - Enables to isolate the UPS From Mains, whenever Needed.
- High & Standard Charging Option - For Quick Battery Charging.
- Unique Ultra Sonic Switching- For Noiseless Performance.
- Compatiable With all Battery Type - Tubular, Local & Flate Plate.

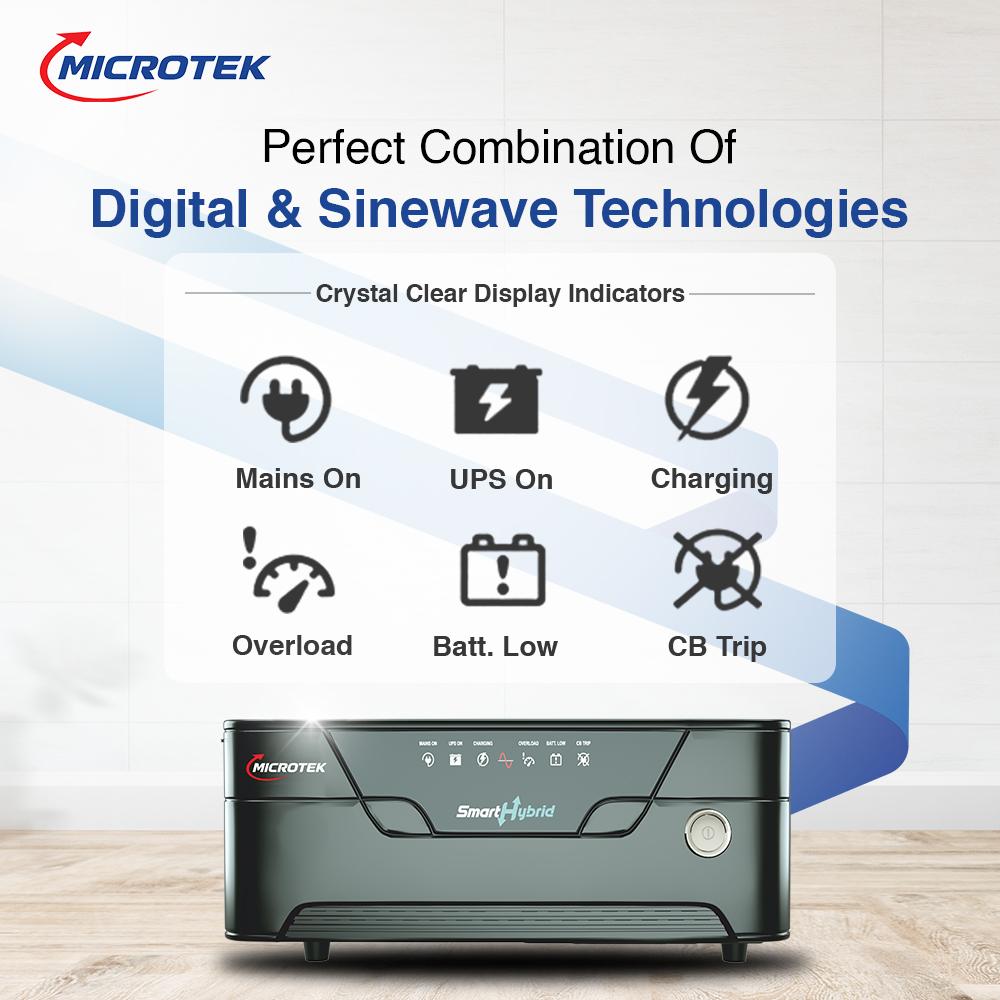

DISPLAY
- MAINS ON
- UPS ON
- BATTERY CHARGING
- OVERLOAD
- BATTERY LOW
- FAULT INDICATION
MODEL | SMART HYBRID 1875 (24V) DG/SW |
---|---|
INPUT | |
INPUT VOLTAGE (Standard range) | 100V ~ 300V |
INPUT VOLTAGE (Narrow Range) | 180V ~ 260V |
OUTPUT | |
OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
OUTPUT VOLTAGE (UPS Mode) | 200V ~ 230V + 10% |
OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
OUTPUT WAVE FROM (UPS Mode) | Pure Sinewave |
CHANGE-OVER | |
SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
UPS TRANSFER TIME | <15msec |
TECHNOLOGY | |
DESIGN | Micro Controller Based Design With IPS Technology |
BATTERY CHARGING CURRENT | 10% of the Rated Battery Current in AH |
UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
BROWNS ON MAINS VOLTAGE | 100V +40V |
EFFICIENCY (BATTERY MODE) | >80% |
AUTO RESET FEATURE | YES |
INPUT DC RANGE | 21V ~ 28.4V |
CHARGING CURRENT (Standard) | 10 Amps +1 Amps |
CHARGING CURRENT (High) | 14 Amps +1 Amps |
