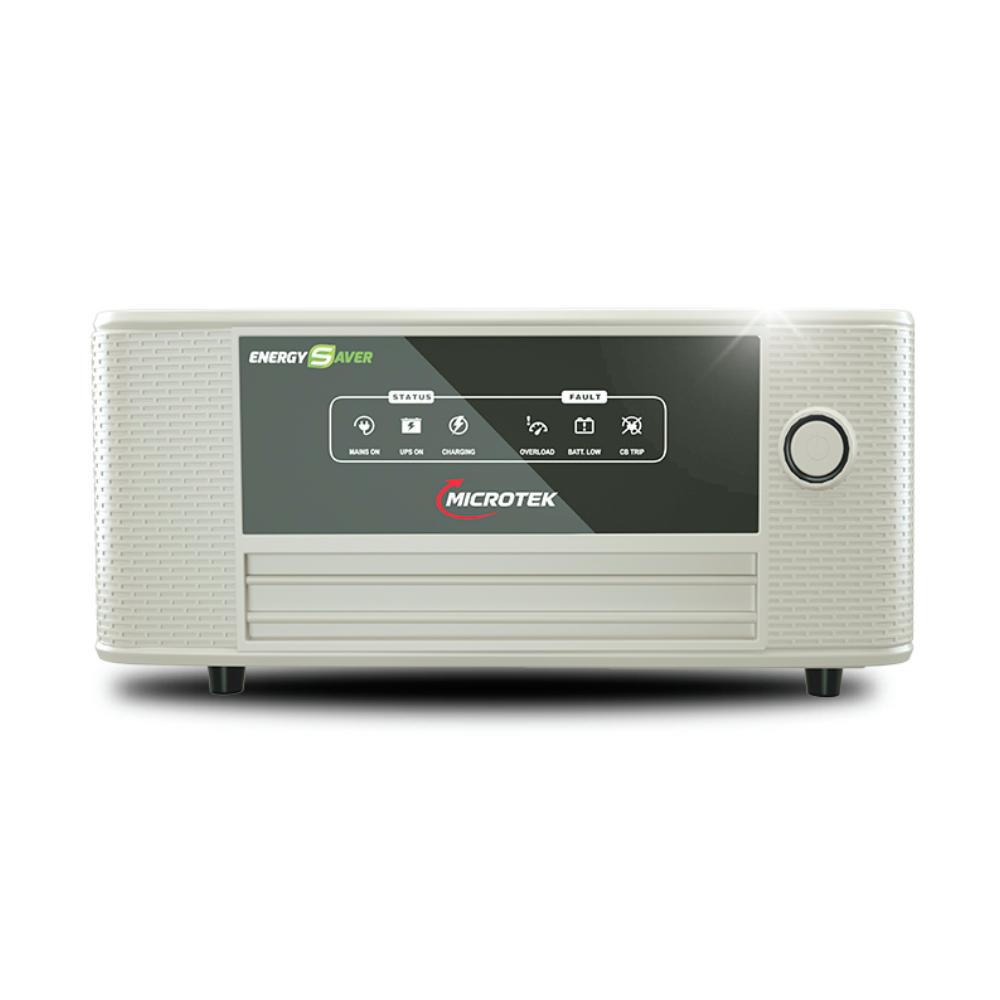

Energy Saver Digital UPS Model 825 (12V) DG
- Weight7.4kg
- Output VoltageSame as INPUT
- Dimensions (L*W*H)34.4x39x20.7
SALIENT FEATURES:
Energy Saver Environment Friendly UPS Series is the most Energy effcient UPS Series in its Category. It is powered by the industry lowest Watt Loss EI Core Transformer that helps in saving the Maximum Electricity in its category, and hence our Hard Earned Money.
- Micro Controller Based Intelligent Control Design.
- LED Display Indications for UPS Status and Fault
- CCCV Technology with Auto Trickle Mode
- Smart Overload Sense and Short Circuit Protection
Microtek Energy Saver Digital UPS Model 825 (12V) DG is Super Energy Efficient Series. It is designed using latest state-of-the art Technology. It has Inbuilt Battery Water Level Indicator, which ensures timely Water Topping for Longer Life of the Battery. It is Specially Designed to give Longer Backups in Long Power cut/Rural Areas. It has Battery Selection Switch to get Equal Performance from all types of Batteries like Tubular/Flat Plate/ Local Battery.
Microtek Energy Saver Digital UPS Model 825 (12V) DG is Super Energy Efficient Series. It is designed using latest state-of-the art Technology. It has Inbuilt Battery Water Level Indicator, which ensures timely Water Topping for Longer Life of the Battery. It is Specially Designed to give Longer Backups in Long Power cut/Rural Areas. It has Battery Selection Switch to get Equal Performance from all types of Batteries like Tubular/Flat Plate/ Local Battery.
- Micro Controller Based Intelligent Control Design.
- LED Display Indications for UPS Status and Fault
- CCCV Technology with Auto Trickle Mode
- Smart Overload Sense and Short Circuit Protection
- Battery State Monitoring
- Multi Stage Battery Charger
- Mains Input Voltage Range Slide Selection Switch
- Battery Slide Selection Switch (Local/Flat/Tubular)
DISPLAY
- MAINS ON
- UPS ON
- BATTERY CHARGING
- OVERLOAD
- BATTERY LOW
- FAULT INDICATION
| MODEL | ENERGY SAVER 825 (12V) DG |
|---|---|
| INPUT | |
| INPUT VOLTAGE (Standard range) | 100V ~ 300V |
| INPUT VOLTAGE (Narrow Range) | 180V ~ 260V |
| OUTPUT | |
| OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
| OUTPUT VOLTAGE (UPS Mode) | 200V ~ 230V + 10% |
| OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
| OUTPUT WAVE FROM (UPS Mode) | TPZi Wave Form |
| CHANGE-OVER | |
| SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
| UPS TRANSFER TIME | <15msec |
| TECHNOLOGY | |
| DESIGN | Micro Controller Based Design With IPS Technology |
| BATTERY CHARGING CURRENT | 10% of the Rated Battery Current in AH |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
| BROWNS ON MAINS VOLTAGE | 100V +40V |
| EFFICIENCY (BATTERY MODE) | >87% |
| AUTO RESET FEATURE | YES |
| INPUT DC RANGE | 10.5V ~ 14.2V |
| CHARGING CURRENT (Standard) | 10 Amps +1 Amps |
| CHARGING CURRENT (High) | 13 Amps +1 Amps |
